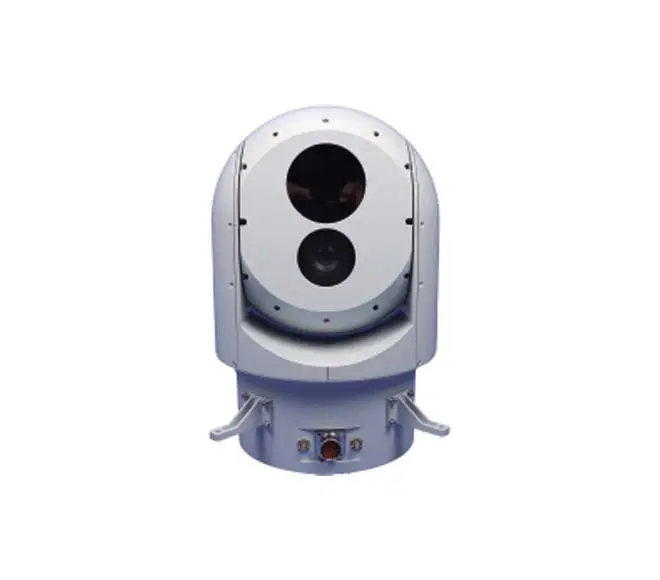

Airborne Surveillance System TAG640-C129T100-L5

Power line inspection, targeting, search and rescue, anti-smuggling, evidence gathering, security, environment inspection, preventing forest fires, navigation assistance, etc. The SCA200 Series is made to be equipped on a variety of medium to large manned and unmanned drones, airships, and other vessels or vehicles for aviation and maritime operations with Everay airborne surveillance cameras.

Specifications of Airborne System TAG640-C129T100-L5


Visible Camera

Detector

1/2.8 ”

1/1.8 ”

Lens

30× optical zoom(4.3mm~129mm)

38×(8mm-300mm)

Resolution

1080P(1920X1080)

1080P(1920×1080)

IR camera

Detector

Uncooled LWIR detector

Uncooled LWIR detector

Resolution

640X512

640X512

Focal length

25-100mm

25-75mm

Laser Sensor (Eye-safe Laser Ⅰ)

Laser Ranging

Distance ≥5Km,Accuracy ±5m

Gyro-stabilized PT

Accuracy

≤0.3mrad(1σ)

Azimuth Range

Nx360°

Elevation Range

-90°~+30°

El angular Velocity

≥80°/s

Az angular Velocity

≥80°/s

El angular Acceleration

≥200°/s²

Az angular Acceleration

≥200°/s²

Interface

Video Output

HD-SDI

Control

RS422

Power

External Power

20~30V DC

Power Consumption

≤300W,Peak≤600W

Environmental

Operating Temp

-20℃~+65℃/-40℃~+65℃

Storage Temp

-40℃~+85℃

Image Tracking

Integration

Built-in

Function

HD Auto Tracking /Auto Target Recognition(optional)

General

Weight

≤20kg

Dimension

Φ280mm×430mm
