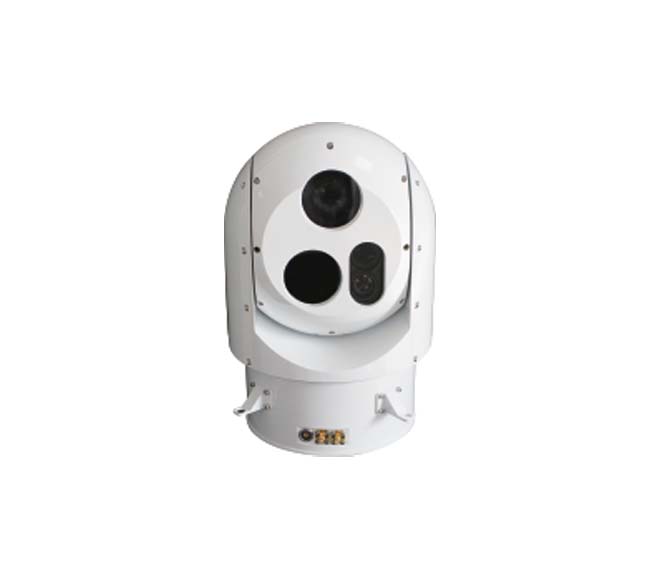

Land Surveillance System TLG640-C129T75

Suitable for power line inspection, targeting, search and rescue, anti-smuggling, evidence collection, security, environment inspection, forest fire prevention, navigation assistance, etc. The SCA200 Series is designed for equipping on various medium to large manned/unmanned drones and airships,and other vessels or vehicles for aviation and maritime operating with Everay land surveillance system.


Specifications of Land System TLG640-C129T75


Dual-band EO gimbal (Visible+IR)

Three-band EO gimbal (Visible+IR+Laser)

Visible Camera

Detector

1/2.8 ”

Lens

Optical Zoom 30×(4.3mm-129mm)

Resolution

1080P(1920X1080)

Thermal Camera

Detector

Uncooled LWIR detector

Resolution

640×512

Focal Length

75mm

Laser Sensor (Eye-safe Laser Ⅰ)

Laser Ranging

Maximum 3km,5km(optional)  Accuracy:±5m

Stabilized PT

Accuracy

≤0.3mrad(1σ)

Azimuth Range

Nx360°

Elevation Range

-90°~+30°

El angular Velocity

≥80°/s

Az angular Velocity

≥80°/s

El angular Acceleration

≥200°/s²

Az angular Acceleration

≥200°/s²

Image Tracking

Integration

Built-in

Function

HD Auto Tracking /Auto Target Recognition(optional)

Interface

Video Output

HD-SDI

Control

RS422

Power

External Power

20~30V DC

Power Consumption

≤60W,Peak≤120W

Environmental

Operating Temp

-20℃~+65℃/-40℃~+65℃

Storage Temp

-40℃~+85℃

General

Weight

≤5.5kg

Dimension

Φ200mm×300mm


Features of Land System TLG640-C129T75

  • Multi-optical sensors combination (video, photo, IR and laser)

  • High-accuracy optical fiber gyro-stabilized platform

  • Integrate HD Auto Tracking
