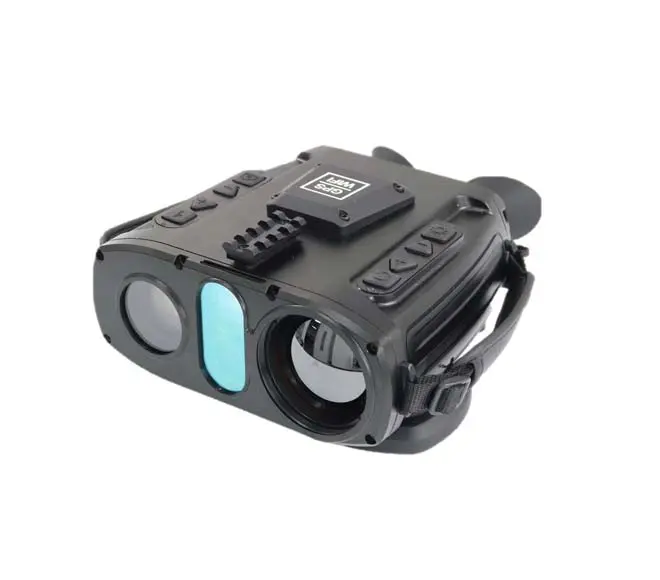

TB640-C216T60-L3 professional night vision thermal binoculars integrate with uncooled thermal imager, visible camera, GPS, electronic compass, an eye-safe laser range finder. The night vision thermal binoculars can be used for target searching, locates the target's position, and take a photo on earth, sea surface, in forest. It's rugged and portable.
Working Range | Human （1.8m×0.5m） | Vehicle （2.3m×2.3m） | |||
Detection Range | >2km | >3.5km | |||
Recognition Range | >1km | >1.8km | |||
Infrared Thermal Imaging Camera | Focus | 60mm Optional Magnify lens 1.5X | |||
FOV | 10.3°×8.3° / 7.1°×4.2° | ||||
Detector Type | VOX | ||||
Array Size | 640x512,17um | ||||
Spectral Respose | 7~14µm | ||||
NETD | ≤35mK @F1.0,300K | ||||
Frame rate | 50Hz | ||||
Visible Camera | Focus | 6mm~216mm continues; x36 optical zoom;x32 digital zoom; | |||
Angle of View(D,H,V) | Wide | 66.3° | 56.5° | 66.66° | |
tele | 2.44° | 2.32° | 3.31° | ||
Image Sensor | Sony IMX385LQR-C CMOS Sensor | ||||
Pixel size | 3.5um | ||||
Active Pixels | 1920x1080 | ||||
S/N Ratio | More than 50dB | ||||
Frame Rate | 50Hz | ||||
Image Video Management | Display Type | Color OLED screen | |||
Oled Resolution | 1024x768 | ||||
Thermal image | 1~8 continous digital zoom | ||||
Image Plarity | White hot, Black hot & Pseudo-colour | ||||
Brightness | Adjustable via Menu | ||||
Contrast | Adjustable via Menu | ||||
DDE | Adjustable via Menu | ||||
Calibration | Auto&Manual Supported | ||||
Laser Range Finder | Eye Safety | Class 1,eye-safe | |||
Wavelength | 1550nm | ||||
Vehicle-size NATO target,2.3 x2.3m | 3km | ||||
Human-size NATO target,1.0mx1.0m | 1km | ||||
Distance measurement accuracy(m) | ±1m | ||||
GPS | Accuracy | ±5m | |||
Compass | Azimuth accuracy | 1° OPTIONAL ≤0.5° | |||
angle of pitch accuracy | 1°OPTIONAL ≤0.3° | ||||
WIFI | Buti-in | ||||
Target location | accuracy | ±10m（<1km），±20m（1km ~2.5km） | |||
Video Storage | Built-in 16GB SD card, no less than 9000 compress picture(JPG) and no less than 2h video(AVI) | ||||
Power | Continuous working time | >6h | |||
Power input | DC12V adapter, voltage input range12V~32V | ||||
Interface (LEMO connector) | Power | DC12V adapter | |||
Video out | VGA | ||||
Data | USB2.0 | ||||
Control interface | RS232 | ||||
Environment Parameters | Working Temperature | -40℃～+60℃ | |||
Encapsulation | IP67 | ||||
Physical Characteristics | Weight | <1.9kg | |||
Size | 235.8mm×206mm×102.3mm | ||||
640x512 high resolution uncooled detector can be combined with high zoom visible(30X OPTICAL ZOOM)to search, identify the target;
Built-in laser range finder, electrical compass, and GPS, optional self-locate and target location function;
With the integrating function of taking photos, videos and reviewing, which can be output by USB; With external GPS, and two-way wi-fi function;
The professional night vision thermal binoculars display can be contacted with an external display.
