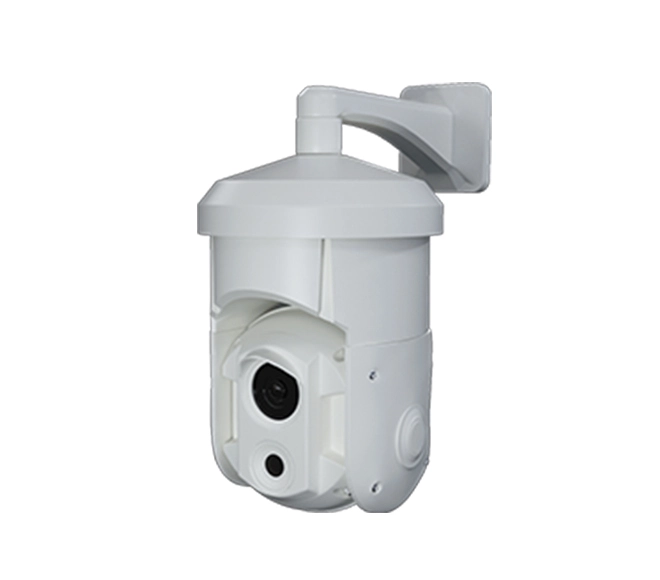

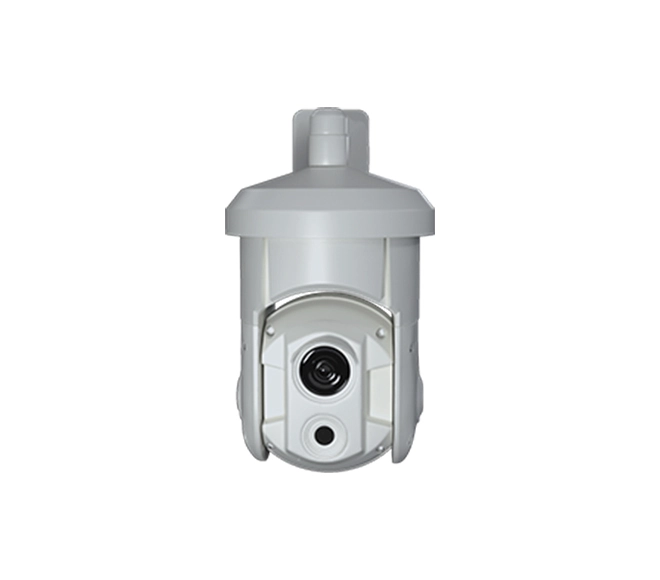

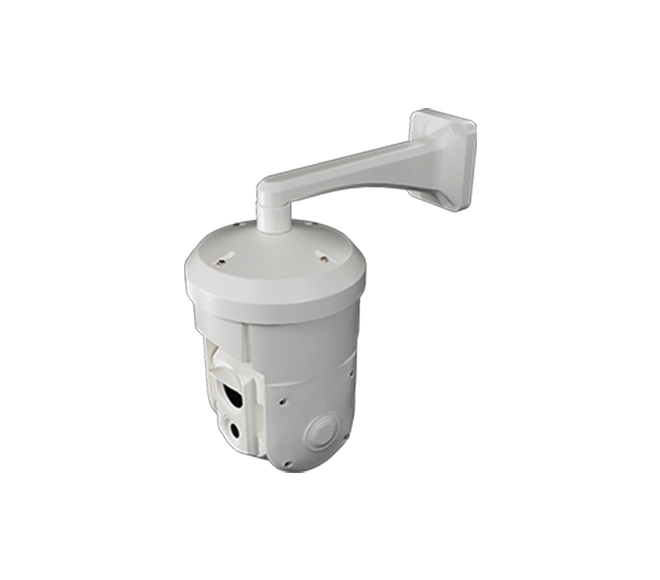

Forest Fire Detection Camera HSD-INV-RT Series

HSD-INV-RT is a dual-spectrum camera, using infrared thermal imaging + visible light dual-spectrum imaging mode. The forest fire detection camera is widely used in all kinds of important facilities, scene security control, security control and control of emergency events.

Get a Quote

Specifications of Forest Fire Detection Camera HSD-INV-Micro Series


thermal image cameraSensor typevox uncooled FPA
Maxlimum pic-size384x288320×240
pixel17um12um
Display resolution1920x1080
spectrum8~14um
NETD<50mk@25℃, F#1.0<60mk(@25℃,F#1.0)
Focal lengh6.8mm4mm
Detection distancetemperature measurement 0.2m×0.3m30m15m
fire 2m×1m1.8km400m
vessels/vehicles 2.3m×2.3m800m250m
human 0.6m×1.7m300m120m
FOV55° x41°55°× 41°
FocusManual
paletteBtack hot/white hot /iron /rainbow and other Pseudo-colors (14 modes)
visible image cameraSensor1 24 high performancs cMos
Pixel200w
resolution1920x1080
Focal length7mm
optica lzoomcolor：0.002 Lux @(F1.5);Black/white. 0.0002Lum@(F1.5.0Lux with lR)
focusauto / semi-auto/ manual
PTZPan rangeo-350
Pan speedkaytoardpan speed cortrokl:0.~0o/ s. speed can be set
Tilt range-90°~90°
Tilt speedkeyboard tilt speed control，0.1~100°/s. speed can be set
Tour8 tours, 256 presets can be set each tour
NetwoerkNetwork protocolIPvu4, TCP/P.UDPH1TP.DHCP.RTPRTCP/RTSP.FTPNTP.IGM/PICMp
video compression standardH.265/H 264/MJPEG/MPEG4
FunctionMulti-heat source detectionsupport
temperature exceed alarmThreshold can be set, alarm when temperature exceeds
temperature rise alarmalarm when temperature rises within the set time
Liquid level identifyidentify liquid level
Accurate Temperatura MeasurementMaximum/minimum/average temperature can be set
Measure range: -20℃~550℃
accuracy. ±2℃
Al blocksupport dynamic /static shielding functions, block false alarm of obstructions obstructions
perimeter systemStop timing detection, area intrusion detection, out-of-bounds detection, entering area detection, leaving area detection
partitionFunctions of every preset work separately
linterfaceCommunicate interface1 RJ45,10M; 100M adaptive Ethernet interface, 1RS-485 intertace
Alarm outputSDK alarm output
Generalwork temperature & humidity-40℃~65℃, humidity＜90%
Protection rateIP66, Tvs 6000V Lightning protection, anti-surge, GB/T17626.5
class-4
Power supplyDC12
power consumptionMaximum power consumption 36w
dimension (mm)210mm(L)x210mm(W)x311mm(H)
Weight4kg
